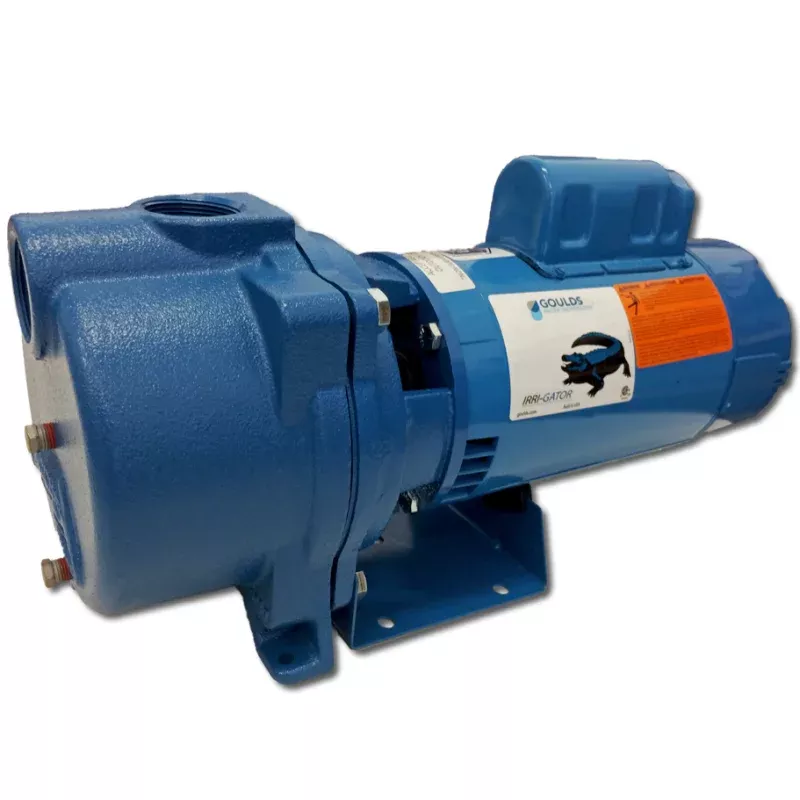

Goulds Pump GT303 Centrifugal Irrigation Pump – 208/230/460V – 3HP – 3-phase

Description

Manufacturer: Goulds
Brand: Xylem
Series: GT Irri-Gator Series
MPN: GT303
Product Type: Centrifugal Pump
Product Best Use For: Transfer / Irrigation Pump
Horsepower: 3 HP
Voltage: 208/230/460 V
Pipe Connections: 1-1/2″ FNPT (Inlet) / 1-1/2″ FNPT (Outlet)
Optimum TDH Range: 95 to 115 TDH
Optimum PSI Range: 40 to 45 psi
Optimum Flow Rate: 60 to 80 GPM

Standard Features of Goulds GT303 Series Pumps
Self Priming design – Once initially primed pump is capable of reprime
Field Serviceable – Back pull out design for easy serving
Strong and Durable cast iron casing design
Electro-Coat paint process for corrosion resistance
Excellent corrosion and abrasion resistance materials Lexan Guidevane
Noryl Impeller

Application / Use Options
Lawn / Irrigation / Sprinkler Systems
Heat pumps
Water transfer
Air conditioning systems
Dewatering

Goulds GT Series Centrifugal Irrigator Pump – SpecificationsImpeller:
Glass-filled, abrasion resistant engineered composite

Casing: Cast iron, 4-bolt, back pullout design. Openings for vacuum gauge and casing drain.

Motor Powered for Continuous Operation:
Pump ratings are within the motor manufacturers recommended working limits. Can be operated continuously without damage. ( Only with Water in Housing )

Mechanical Seal: Carbon/ceramic faces, Buna elastomers. 300 series stainless steel metal parts. Diaphragm prevents the seal from running dry.

Pump End:
Pipe Connections: 1 NPT ( Suction & Discharge )
Max Suction Lift: 25 feet
Maximum water temperature: 140 F (60 C)
Maximum working pressure: 125 psi
Rotation: clockwise when viewed from motor end.

Motor Specifications:
NEW STYLE – Motors – Wide Body – 56J – Manufactured by US Motors
NEMA standard open drip proof
60 Hz, 3500 rpm
Stainless steel shaft
Three phase
Built-in overload with automatic reset
Motor Voltage Options: 230V ONLY

GT_IRRIGATOR.pdf
